Expendable Fuse Tube Caps

Utility Solutions Expendable Fuse Caps are manufactured in accordance with ANSI C37.42 design criteria concerning thread pitch and venting pressure. The Utility Solutions line of expendable caps will work on all 100 and 200 Amp expendable fuse tubes. Stamped “E” on button head signifies Expendable Cap.

 Expendable Fuse Tube Caps Details

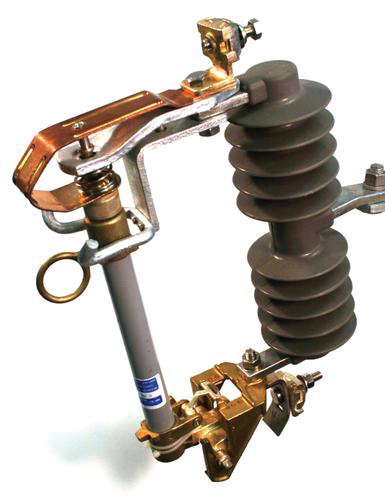

Polymeric Overhead Cutout

The Utility Solutions polymeric cutout provides a lower cost alternative to the utility without sacrificing performance or quality. All electrical contacts are silver plated. Tin plated parallel groove connectors are standard. Groove 1 handles #6 solid through #2 stranded. Groove #2 handles #2 solid through 25 kcmil or 4/0 ACSR. The USCO-005 comes equipped with a heavy duty galvanized arcing horns and NEMA Type B bracket as standard. Manufactured from silicone rubber. All mechanical fasteners are made from 304 type stainless steel which is important in coastal or severe environments.

Read more...

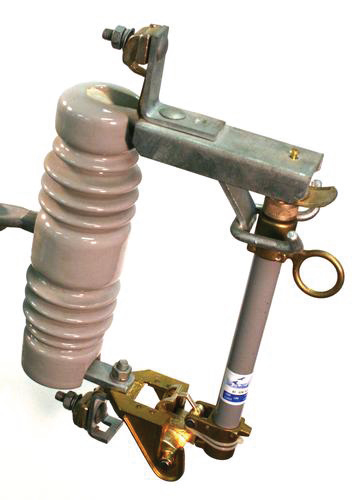

Porcelain Overhead Cutout

The Utility Solutions overhead cutout provides a lower cost alternative to the utility without sacrificing performance or quality. All electrical contacts are silver plated. Tin plated parallel groove connectors are standard. Groove 1 handles #6 solid through #2 stranded. Groove #2 handles #2 solid through 25 mil or 4/0 ACSR. Both models come equipped with a heavy duty galvanized sleet shield, arcing horns and NEMA Type B bracket as standard.

Read more...
