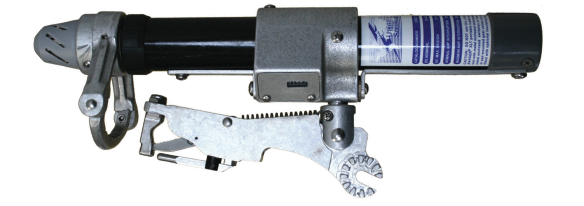

LOAD-RANGER XLT Load Break Tool
LIGHT & BALANCED
The LOAD-RANGER® XLT Load Break Tool is specifically engineered to be light and maneuverable. The XLT-1 weighs under 5 pounds and is approximately 1 lb 3 oz lighter than the competition. The arm attachment, counter mechanism and other key components are centrally located so the weight of the tool is aligned with the hot stick attachment giving the user maximum control.
SAFE & RELIABLE
The Utility Solutions XLT product line has higher metal-to-metal clearance when fully extended, compared to the competition. This can reduce flash-over potential. The aluminum and fiberglass components are machined to very high tolerances and are designed for long life.
EASY RESET
The XLT line is designed to be user friendly and simple to operate. The side reset button is easier than a plunger style and allows lineman to keep their gloves on, eliminating pinched fingers.
LOW PROFILE
The low profile head enables our tool to reach switches that have animal guards installed. Our built-in counter is located in the body rather than the head allowing a smaller profile tool that is better balanced.
OPTIONS
The XLT line is offered with numerous options including a Pad Mount version, hard case, soft case, extended insulated hood and an economical non-counter version

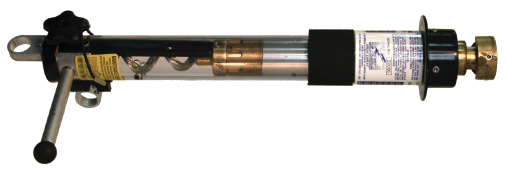

Break Safe
The BREAK-SAFE® is a jumper clamp that functions like a portable switch. It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper.
The BREAK-SAFE® has three operating functions:
- LOAD BREAK
- LOAD PICKUP
- CONTINUOUS CURRENT DUTY
The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill Head:
- 15 kV / 300 amp
- 27 kV / 300 amp
- 38 kV / 300 amp
- 46 kV / 200 amp
MINIMUM SAFE DISTANCE
In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions.
The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.
Mini-Max™ Portable Load Pick-up Tool
Operational voltage 27 kV maximum. Continuous current rating 300 Amp maximum. Can be used on main line conductor size ranging from #6 copper minimum up to 954 ACSR (1.1” diameter) maximum.
Product weight: 7.1 pounds
Product dimension: 20” long x approximately 2.5” diameter.
Fuse-Safe™
Additional Protection that’s Lightweight & Highly Portable!
Product dimension: Varies according to the fuse selected. Product weight: 2.5 pounds
The Fuse-Safe™ quickly creates a temporary portable current limiting fuse device out of any current limiting fuse with ½” diameter end studs. The Fuse-Safe™ can be used in series with the Utility Solutions BREAK-SAFE® tool to add temporary fuse and fault close in protection.
The Fuse-Safe™ consists of an upper duckbill clamp coupling and a lower parking stand coupling. The lower coupling incorporates a fixed parking stand that provides flexibility to the user during installation and operation. Installation of the upper and lower coupling requires only the use of a standard 1/8” Allen wrench (provided). USFS-001 can be provided with a current limiting fuse selected by the customer.
 |
 |
 |
 |
 |
 |
