SPI4000
Smart Primary Injection Test System
Primary injection test set for protective relay equipment and circuit breakers
The SPI4000 is a high current primary injection test system with the flexibility to test, via primary injection, a wide variety of devices, including low voltage power circuit breakers, moulded-case circuit breakers equipped with thermal magnetic or electronic trip devices, overcurrent relays, and thermal relays. Designed to accommodate circuit breakers with ratings of up to 4000 Amps frame size, the SPI4000 fully complies with NEMA AB-4 test guidelines.
The SPI system is the first high current test system that allows you to type in a predetermined current amplitude and will then generate and regulate the requested high current without preheating the test sample by pulsing the output current at high amplitudes. Additionally, the SPI system has the unique ability to turn on at the current zero crossing every time for any load by automatically adjusting the output firing angle. This eliminates DC offset for all circuit breaker types and eliminates the need for you to determine and manually adjust the firing angle for various loads and circuit breakers.
Fluke ii915 Acoustic Imager
Fluke ii915 Acoustic Imager: Detect, Locate, and Assess Anomalies
- Enhanced Performance: Improved detection performance for gas leaks, electrical discharges, and mechanical issues.
- LeakQ™ Mode: Estimated leak size and cost.
- PDQ Mode™: Assesses discharge severity.
- MecQ™ Mode: Proactively address potential problems in rotating mechanical components.
- Reporting Features: Integrated visual and textual tagging and annotation functionalities for streamlined reporting.
- Wireless Upload: Easily transfer data to Fluke Connect.
The Fluke ii915 Acoustic Imager is a powerful tool designed to identify and evaluate issues in various systems. With three distinct modes—LeakQ™, PDQ™, and MecQ™—this innovative device empowers maintenance professionals to take proactive measures and prevent costly problems. Let’s explore its capabilities:
VLF Sine Wave 62 kV
VLF sine wave test system for medium voltage cables
- Performs cable withstand testing, cable diagnosis, and sheath fault pinpointing
- Smallest and lightest unit on the market in its class
- Unique user-experience, thanks to a large, colour touch screen
- Automatic result interpretation as per latest IEEE 400.2 standard
- High safety, thanks to its analogue residual voltage indicator
The VLF Sine 62 kV, with integrated tan delta, is a compact, robust, and portable high-performance VLF sine wave test system for medium voltage cables.
The 62 kV tester is a multifunctional tool. In addition to VLF and DC testing, it can also perform sheath testing and sheath fault pinpointing when used in combination with the step voltage probe ESG NT/ NT2. Furthermore, the optional internal tan delta expands the system to assess both cable integrity and condition. The smart VLF system automatically adjusts the test frequency to the cable length, making even tests on 35 kV rated cables (up to 25 km) easy and reliable.
Field operations require no external computer. Equipped with intuitive operating software and a large internal memory, the VLF sine wave 62 kV evaluates and stores all data automatically.
Using either a USB port or wireless connection to mobile end-device (coming soon), datasets can be easily exported and processed for report generation via the PC software MeggerBook Lite (included in delivery). What's more, you can review all performed measurements either immediately or at a later point in time on the unit itself.

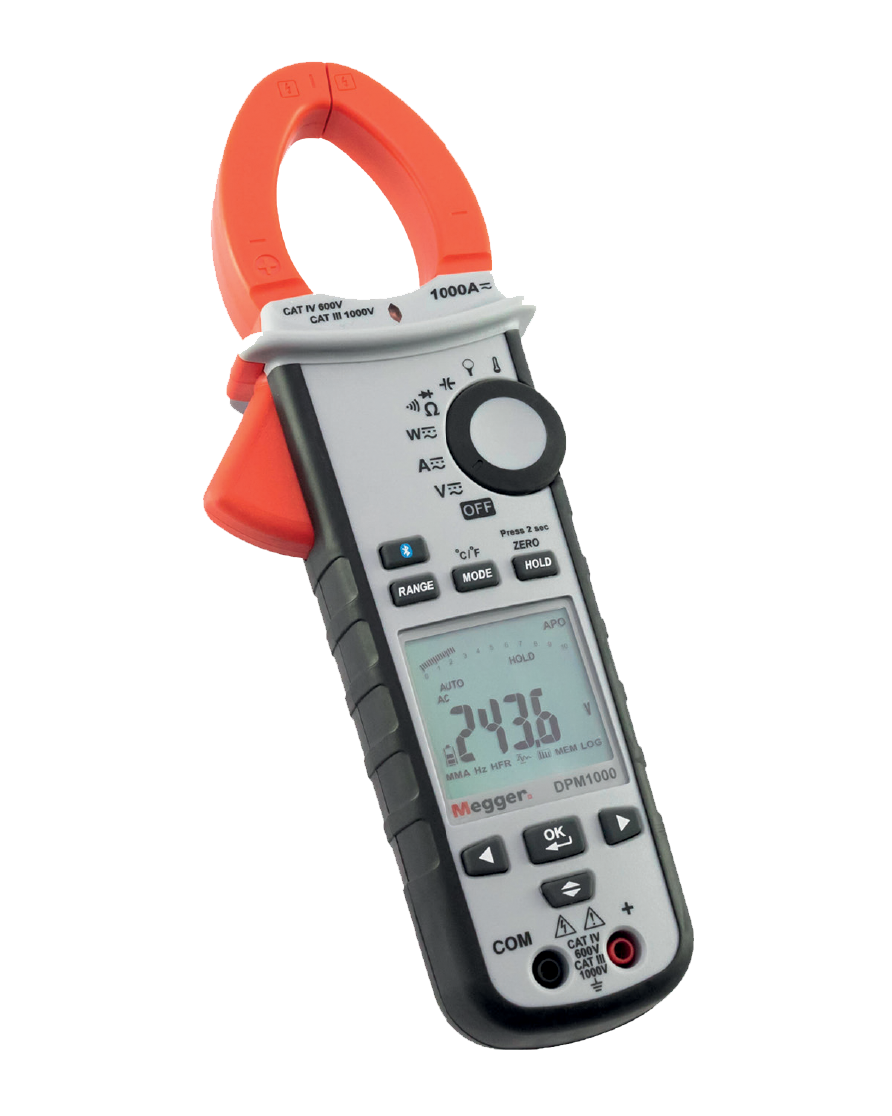

VLF Sine Wave 62 kV DatasheetDPM1000
Power Clamp Meter
- AC/DC voltage to 1000 V
- AC/DC current to 1000 A
- True RMS
- Resistance 100 kΩ
- Bluetooth link to the Megger Link app
- Phase rotation indication
- Continuity Beeper
- Data Hold/Min-Max/Peak Hold
- Bright LED torch
- CAT IV 600 V Rating
- Supplied with carry case and Carrying holster/pouch
The new Megger DPM1000 power clamp meter combines the functionality of a power meter, harmonics meter, and data logger in one easy-to-use package that meets the requirements of BSEN 61010-1 CAT IV 600 V for supply side applications. It has a large, backlit LCD screen that clearly displays all measurements that can be selected at the touch of a button or when rotating the selection dial. It also features auto-ranging and has three-phase rotation indication and automatically switches off to save battery consumption.
The DPM1000 can measure DC, AC, pulsed, and mixed currents up to 1000 A simply by clamping the jaws around the appropriate conductor, whilst voltages up to 1000 V AC or DC may be measured by the supplied test leads. Where power measurements are to be made, both techniques above are performed simultaneously. All power related parameters can be measured including energy consumption, frequency, total harmonic distortion, distortion factor, and capacitance.
The instrument can make temperature measurements up to 1000 °C using the thermocouple provided, has an internal torch that can be used during the operation of the clamp, and has automatic non-contact voltage detection for identification of live circuits.
The DPM1000 is ideally suited to measuring mains power quality and applications in the development, installation, maintenance, and repair of equipment and devices used in power electronics and power engineering
PVA-1500 Series
PV Analyzer, I-V Curve Tracer
Key features
- Measures and displays I-V curves up to 1500V and 30A, including on high efficiency modules (PVA-1500HE2)
- Advanced built-in PV model provides immediate PV performance checking
- Sweep-to-sweep delay of 9 seconds to measure 3.5MW in <1hr
- Wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting
- Automates data management, analysis, and reporting
Measure your solar PV system performance
The PVA-1500 is a cutting-edge I-V curve tracer kit designed to measure PV system performance. With this high precision testing equipment, you can reliably assess the health and performance of solar modules and arrays, making informed decisions to enhance their output and longevity.
The PVA-1500 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. By pinpointing problems early, you can maximize your solar energy production and minimize downtime.
Fluke ii905 Acoustic Imager
Fluke ii905 Acoustic Imager with LeakQ™: Detect, Locate, and Assess Gas Leaks
The Fluke ii905 Acoustic Imager equipped with LeakQ™ acoustic leak detection technology empowers maintenance teams to efficiently detect, locate, and assess gas and vacuum leaks. Whether you're dealing with compressed air systems, pipelines, or industrial equipment, the Fluke ii905 provides valuable insights to optimize your operations.
Key Features:
- Ready-to-Use: The Fluke ii905 comes ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7" LCD display provides clear leak visualization.
- Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQ™ severity index.
- SoundMap™ Overlay: The 7" LCD touchscreen overlays a SoundMap™ on visual images, facilitating rapid leak location identification.
- Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise.
- Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization.
- Leak Sizing: Prioritize repairs based on leak size.
- Collaboration: The reporting tool allows seamless sharing of visuals, tagging, and notes with team members and repair personnel.
SVERKER750/780
Relay and Substation Test System
The SVERKER 750 and SVERKER 780 relay test sets are the engineer's toolbox. The control panel features a logical layout, so SVERKER 650 users will find it comfortably familiar and will be able to start work right away. These instruments are intended primarily for secondary testing of protective relay equipment. Virtually all types of single-phase protection can be tested. You can also test three-phase protection by testing one phase at a time, as well as a number of protective relay systems that require phase shifting, and automatic reclosing devices.
These instruments feature many functions that make relay testing more efficient. For example, they have a powerful measurement section that can display, in addition to time, voltage, and current, Z, R, X, S, P, Q, phase angle, and cos φ. The voltmeter can also be used as a second ammeter (when testing differential relays, for example). All values are presented on a single easy-to-read display.
You can also test directional protective equipment efficiently by means of the built-in variable voltage source. In the SVERKER 780, this has a continuous phase shift function and adjustable frequency as well, and automatic reclosing devices can also be tested just as easily.
Since the compact SVERKER weighs only 18 kg (39 lbs), it’s easy to move from site to site. Two or more SVERKER units can also be synchronised, which allows you to operate a basic three-phase test set.
Designed to comply with EU standards and other personal and operational safety standards, the SVERKER 750 and SVERKER 780 are also equipped with a serial port for communication with personal computers and the PC software SVERKER Win.
